MEET YOUR NEW (FREE) EV CHARGER

The SWTCH Home Charger gives you the convenience of smart home tech with leading reliability and durability. Built to withstand Canadian weather and equipped with smart connectivity for seamless energy monitoring.

Key Features

25' Cable

Long cable for added flexibility in placing your new charger wherever it's most convenient for your home.

All-Weather Reliability

Fully sealed against rain, snow, and dust. Operational from -30°C to +50°C.

High-Speed Charging

Delivers up to 11.5kW (48A) for the hardwired model, charging up to 7x faster than a standard wall outlet.

Multiple Connector Options

Features a standard SAE J1772 or NACS connector, compatible with the vast majority of EVs in North America (Choose the right model for your car).

Smart Connectivity

Built-in Wi-Fi for app integration and energy tracking.

Peace of Mind

Backed by a SWTCH Lifetime Warranty. See program terms for full details.

Learn about your options

NEMA 14-50 vs hardwired

NEMA 14-50 vs hardwired
J1772 vs NACS/Tesla

J1772 vs NACS/Tesla
Does your panel support a charger?

Does your panel support a charger?

Choose Your EV Charger

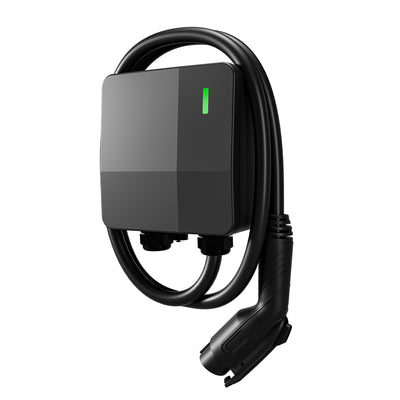

Level 2 EV Charger - 25' Cable

Level 2 EV Charger - 25' Cable

FREE

  • Base Earning Rate: 3¢ per kWh
  • Lifetime Warranty
  • $300 deposit. Refunded after 1,500 kWh of charging (2-4 months)
  • $30 Shipping fee
Wiring:
Plug Type:
Level 2 EV Charger - 25' Cable

Level 2 EV Charger - 25' Cable

$499

  • Base Earning Rate: 5¢ per kWh
  • Lifetime Warranty
  • BC Hydro incentive-eligible
  • $30 Shipping fee
Wiring:
Plug Type:

Charger FAQs

How long is the charger cable?

The charger comes with an 25-foot (7.62 metre) cable.

What is the difference between NEMA 14-50 and hardwiring?

The difference is the installation method and charging speed. The 9.6kW model uses a NEMA 14-50 plug for easy installation and to share an outlet with other devices (like RVs).

The 11.5kW model must be hardwired by an electrician but offers faster charging speeds.

Which model should I choose?

If you already have a NEMA 14-50 outlet or intend to move and want to bring your charger with you, choose the Plug-In model.

If you are installing a new circuit and want the fastest possible charge, choose the Hardwired model.

Which app do I need for my charger?

You must use the SWTCH Home Charging Program app. No other SWTCH app will work with this home charger.

Do I need to use the app every time I charge?

No. Once set up, the charger will start charging your vehicle as soon as it is plugged in.

Will I be able to view my charging history?

Yes. Today, the app provides weekly energy consumption monitoring so you can track your general usage. Over time, we will be adding historical data and per-session charging information as well.

Can I move my charger to a different network?

No. These chargers are pre-configured specifically for the SWTCH Home Charging Program and cannot be moved to a different OCPP network.

How does the hardwired charger connect to my panel?

Our hardwired chargers come with connectors that cannot be removed, so you'll need to use a junction box to complete the connection.

Product Specifications

Complete technical specifications for Joint EVL007 Home Charger

Specification EVL007/09U2 EVL007/11U2
Model No EVL007/09U2 EVL007/11U2
Voltage 208-240Vac 208-240Vac
Amperage/Power 9.6KW/40A 11.5KW/48A
Frequency 50-60HZ
Input Cord NEMA 14-50 or NEMA 6-50 Electrical Plug Hardwired by licensed electrician /
Charging Connector SAE J1772 Type 1, NACS connector (Optional)
Cable Length 25ft
Connectivity WiFi
Operating Temperature -30 °C to +50 °C
Degree of protection NEMA 4/IK10
Product Dimensions 8.6" x 8.6" x 3.7"
Package Dimensions 12" x 16.4" x 10.6"
